RÉF · 1220

Stainless steel wire, 7x19, Ø: 5,00mm

IMG · 01/01
RÉF · 1220 ·
Starting price 0,87 / m
1,05 VAT included · TVA INCL. · LIVRAISON 24/48H
m
Livraison
24/48h Belgique
Retour
14 jours
SAV
Atelier Bruxelles
Conseil
+32 2 640 72 47

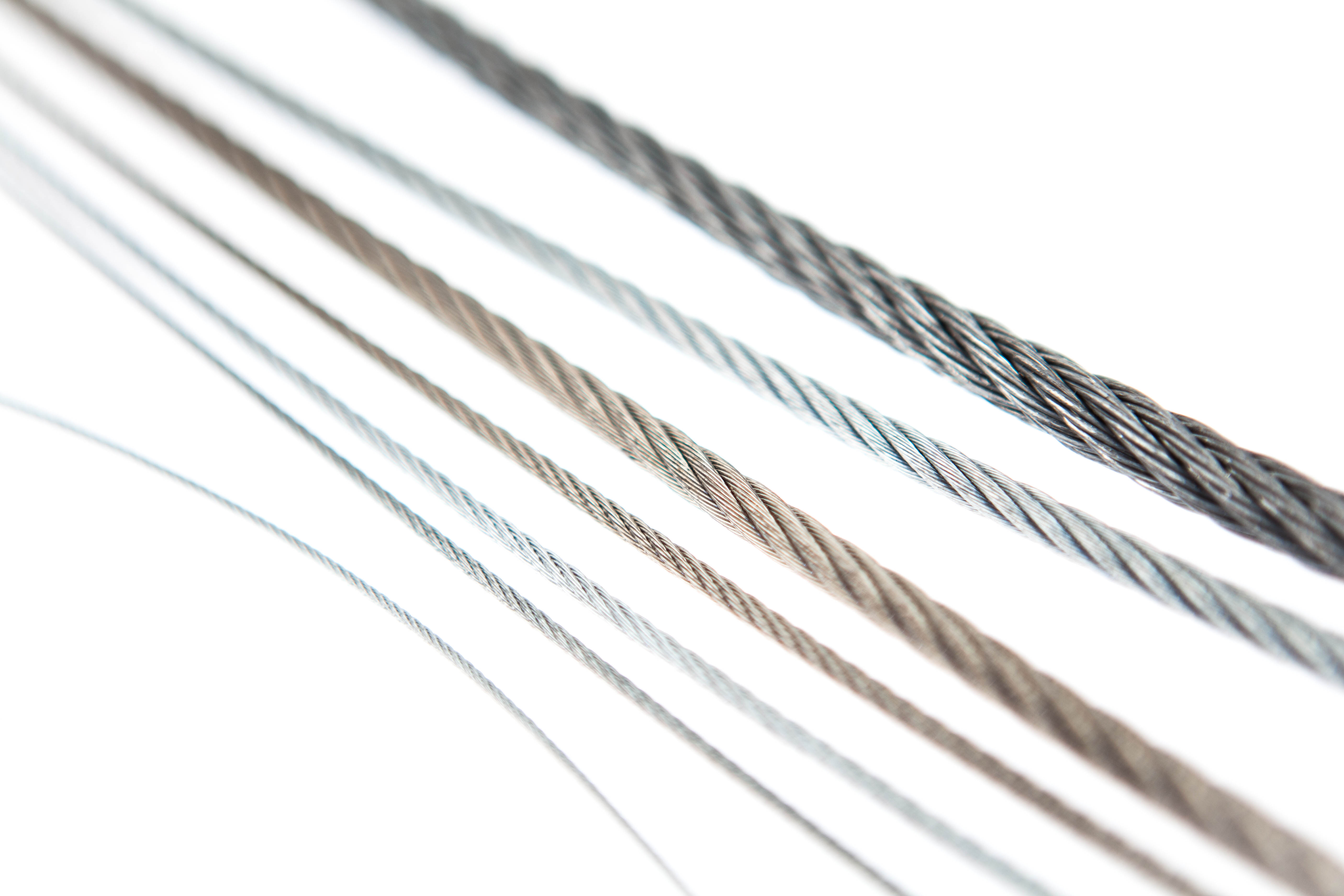

This discrete stainless steel cable(7x19) is ideal for outdoor use (guardrails, railings, façade vegetation, etc.) and for hanging loads. Quality and flexible, this steel rope is sold by the metre at La Corderie. AISI 316 is the quality of stainless steel.
Stainless Steel Cable: Strength and Versatility Stainless steel cable, an alloy containing chromium (and sometimes nickel), offers excellent corrosion resistance, even in marine or very humid environments. More durable and aesthetically pleasing than galvanized steel, this material does not rust and requires very little maintenance. Although often more expensive, it is preferred for applications requiring long life or a high-quality finish (boating, architecture, railings, outdoor installations, lifting). Choosing the optimal stainless steel cable depends on two essential criteria: the steel grade (corrosion resistance) and its construction (flexibility and rigidity). 1. Stainless Steel Grades and Environment The selection of the grade is crucial for the installation's durability, particularly in the face of corrosive agents. 304 (A2) Stainless Steel: Ideal for indoor or non-aggressive outdoor environments. It is perfectly suited for general use (indoor staircases, terraces away from the sea, etc.). 316 (A4) Stainless Steel: Contains molybdenum, which gives it superior resistance to acids and salt. It is essential in corrosive marine or industrial environments (boats, pontoons, seaside railings). 2. Construction and Applications The cable structure is identified by a format such as "7x7" or "7x19" (number of strands x number of wires per strand), determining its flexibility. Construction Flexibility Stiffness Typical Applications 1x19 Low High Railings, guying, static applications where aesthetics and high tension are required. 7x7 Medium Medium Shade sails, clotheslines, control cables, semi-static applications. 7x19 High Low Lifting, lifelines, industrial and marine applications requiring high pulley flexibility. In summary: For static installations such as guardrails, a rigid 1x19 cable in 304 (indoor) or 316 (outdoor/marine) stainless steel is suitable. For lifting operations, a flexible 7x19 cable is preferred, often in 316 stainless steel for its robustness and adaptability to movement.
EAN
Reference W1241
Diameter 5.0 mm
Breaking load 1448.0 daN
Colour Argenté
Component acier inoxydable
Weight 93.0 g / 1.0 m
Price / m
Quantity € (excl.)
1 < 20 2.03
20 < 100 1.45
100 < 500 1.28
500 < ... 0.87
